ΤΕΧΝΟΛΟΓΙΕΣ ΕΛΑΙΟΛΑΔΟΥ

ZYP OIL PUMP

  • This unit is composed of two pumps. One of them is used to pump the oil coming from the vibration sieve to the resting tank; the other one gets the water from the vibration sieve and disposes of.

ZHP PULP PUMP

  • The pulp pump is consisting of the reducer engine, middle spiral and the pump. It is used to convey the pulp to the decanter. It is made of stainless steel AISI 304 conforming to the food regulations.

ZDM FLUX METER

  • This product is used to provide the decanter with the water flow continuously at the same level. It is easily readable how much water is ensured per hour through the indicator installed on the flux meter.

Τεχνικές προδιαγραφές

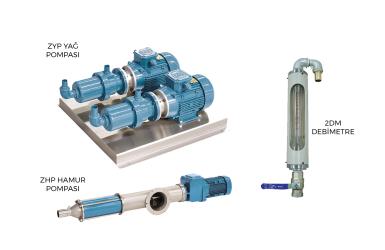

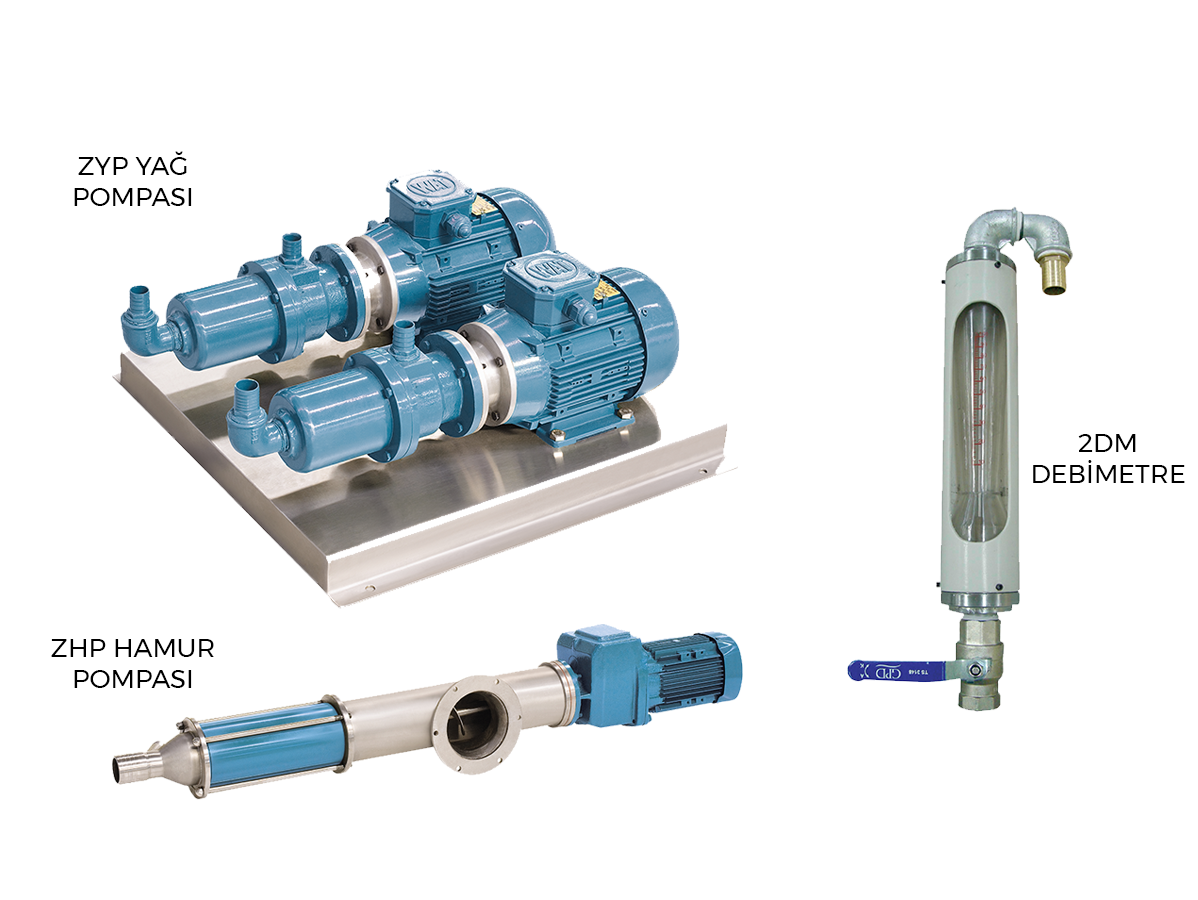

ZYP Oil Pump & ZHP Pulp Pump & ZDM Flux Meter

ZHP Pulp Pump
Capacity 4.000 kg/h
Running Speed 125 rpm
Acceleration Reducer motor
Helix Material AISI 304 Stainless Steel
Engine Material AISI 304 Stainless Steel
Engine Power 2.2 kW
Length and Diameter 1.600 x 130 mm
Weight 84 kg
ZDM Flux Meter
Capacity 800 - 1.000 kg/h
ZYP Oil Pump
Capacity 1.650 lt/h
Engine Power 0.75 kW
Engine Material AISI 304 Stainless Steel
Weight 20 kg
